Deascription

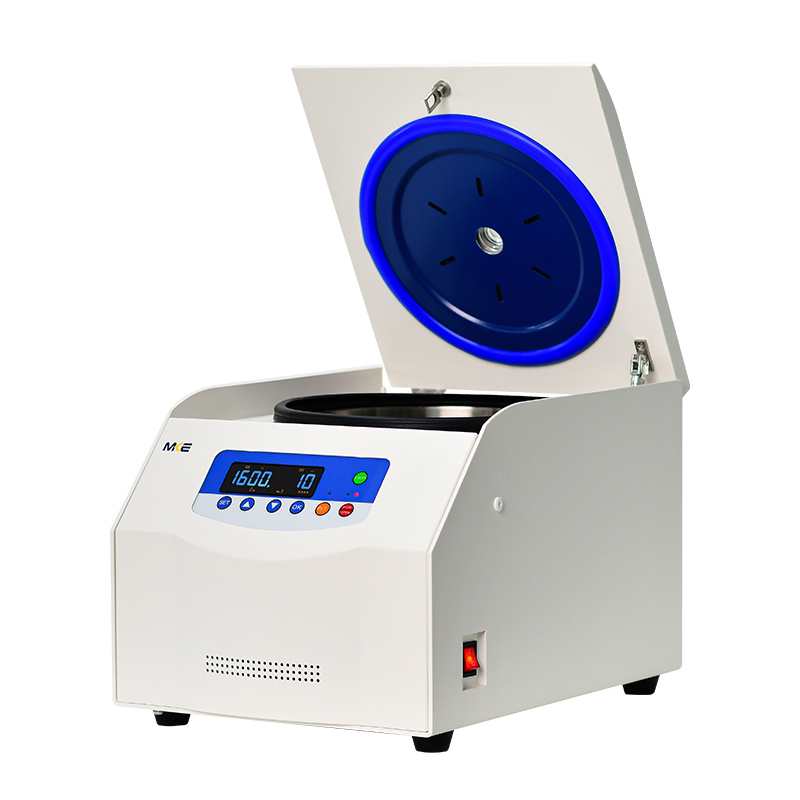

The high-speed centrifuge TG20-WS is a versatile solution equipped with a variety of fixed-angle rotors. This all-purpose centrifuge is designed to accommodate PCR tubes, test tubes, and round-bottom tubes, offering exceptional capacity with a 4 x 100 ml fixed-angle rotor configuration. With its extensive selection of rotors and accessories, along with impressive RCF values reaching up to 31,061 x g, it is well-suited for a diverse range of applications.

Technical Specifications:

Matched Rotors(Customized rotors are available)

No.	Rotor	Capacity	Max.speed	Max. RCF	Note
NO.1	Angle Rotor	12×1.5-2.2ml	21000r/min	31061xg	PP/PC tube
	Adapter	12×0.5ml			PP/PC tube
	Adapter	12×0.2ml			PP/PC tube
NO.2	Angle Rotor	12×5ml	16500r/min	19480xg	PP/PC tube(round bottom)
	Adapter	12×1.5ml			PP/PC tube
NO.3	Angle Rotor	12×10ml	15000r/min	21130xg	PP/PC tube(round bottom)
	Adapter	12×5ml			PP/PC tube
	Adapter	12×1.5ml			PP/PC tube
NO.4	Angle Rotor	24×1.5-2.2ml	16000r/min	24041xg	PP/PC tube
	Adapter	24×0.5ml			PP/PC tube
	Adapter	24×0.2ml			PP/PC tube
N0.5	Angle Rotor	48×1.5-2.2ml	14000r/min	20379xg	PP/PC tube
	Adapter	48×0.5ml			PP/PC tube
	Adapter	48×0.2ml			PP/PC tube
NO.6	Angle Rotor	12×8×0.2ml	12000r/min	16985xg	PCR 8-tube strips
NO.7	Angle Rotor	10×15ml	13000r/min	19650xg	PP/PC tube(pointy bottom)
	Adapter	10×5ml			PP/PC tube
	Adapter	10×1.5ml			PP/PC tube
NO.8	Angle Rotor	6×50ml	13000r/min	18327xg	PP/PC tube(round/pointy bottom)
	Adapter	6×15ml			PP/PC tube
	Adapter	6×10ml			PP/PC tube
	Adapter	6×1.5ml			PP/PC tube
NO.9	Angle Rotor	4×10/100ml	11000r/min	13284xg	PP/PC tube(round bottom)
	Adapter	4×50ml			PP/PC tube
	Adapter	4×15ml			PP/PC tube
	Adapter	4×10ml			PP/PC tube
	Adapter	4×5ml			PP/PC tube
	Adapter	4×1.5ml			PP/PC tube

Features

· Compact and space-saving centrifuge

· TG20-WS use A.C. Frequency conversion motor direct drive, high precision, low noise, long service life

· Microcomputer control, color break code LED screen display, program can be programmed and stored, speed, centrifugal force, time can be displayed at the same time.

· 3 levels damping for anti vibration. Programmable and storable, stores up to 30 programs and provides direct user access with one keystroke save. The stored parameter: combination remains in the memory even after the centrifugation has been switched off.

· TG20-WS Provides the 10 acceleration rates and 10 braking ramp, to effectively avoid secondary sedimentation, with better centrifugation effect.

· Automatic lid-locking and holding during rotor run

· Automatic rotor identification system, coded rotor identification prevents the rotor from over speeding.

· Easily exchangeable rotors, special rotor connector which makes it easy to load and unload rotor.

· Automatic troubleshooting with indication of error code and alarm on the screen.

· Research Use 20000 rpm Centrifuge Machine TG20-WS features “Mute”patent technology. Noise level lower than 58 decibel at the highest rotational speed (patent no. ZL201721835868.9).

· Speed up to 21000rpm depends on rotor type

· With over-speed, over-temperature, electronic safety door lock and other multi-level protection functions to ensure the safety of man and machine.
