Hunan Michael Laboratory Instrument Co.,Ltd.
2 Years
| Ask Lasest Price | |
| Brand Name : | MKE |
| Model Number : | GL-22MC |
| Certification : | CE,ISO13485,ISO9001,SFDA |
| Price : | Negotiable |
| Delivery Time : | 7-15 work days |
| Payment Terms : | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability : | 100 set/month |
Description:

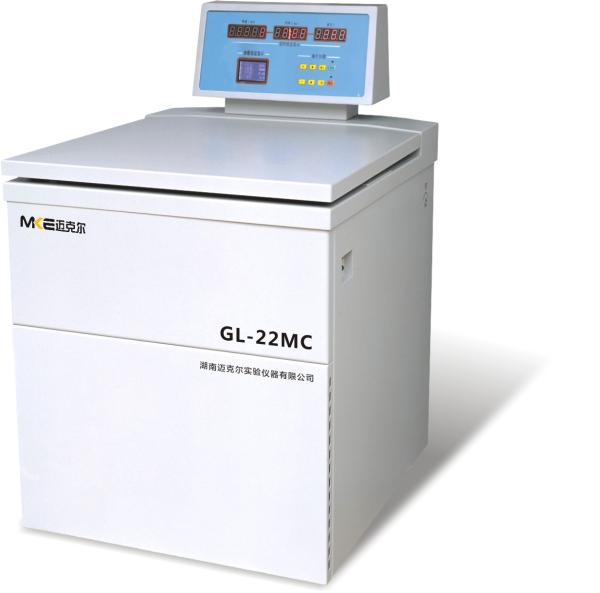

Floor Standing Refrigerated Centrifuge GL-22MC effortlessly handles significant loads with its 4*1000ml fixed rotor and versatile swing-out rotor. Widely utilized in animal and plant molecular biology, cell biology, clinical research, bioengineering, large-scale sample preparation, as well as blood and protein precipitation, its applications are as diverse as its capabilities.
Technical Specifications:
Max. Speed | 22000rpm | Motor | AC frequency conversion motor, direct drive |
Speed accuracy | ±10rpm | Screen | Touch LCD color+digital screen |
Max.Capacity | 4x1000ml | Control | advanced CPU control system |
Max. RCF | 53028xg | Timer range | 1~99h59min |
The refrigerant | R-22 | Temp accuracy | ±1℃ |
Temp.range (at RT 25℃) | -20℃~40℃ | Acceleration/Deceleration Rate | 10 |
Noise | ＜60dB(A) | Power supply | AC220v 50Hz 30A,5kw |
Net weight | 250kg | Dimension | 860×730×1200mm(L×W×H) |
Gross weight | 280kg | Packing Size | 920×790×1700mm(L×W×H) |

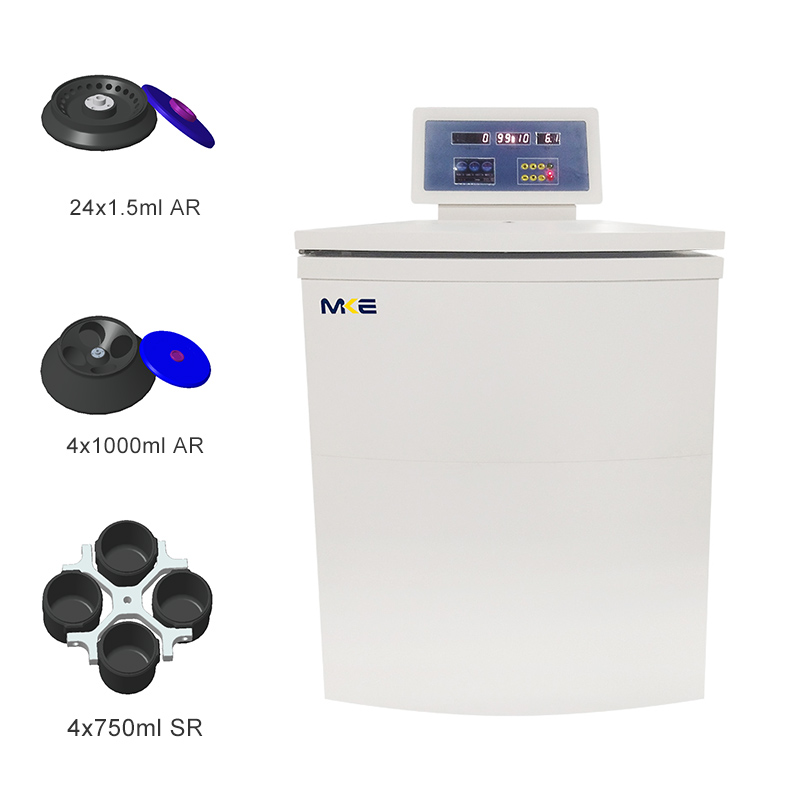

Matched Rotors:
No. | Rotor | Capacity | Max.speed | Max. RCF | Note |
NO.1
| Fixed Angle Rotor | 24×1.5ml | 22000r/min | 53028xg | PP/PC tube |
NO.2
| Fixed Angle Rotor | 16×10ml | 21000r/min | 52300xg | PP/PC tube |
NO.3
| Fixed Angle Rotor | 12×15ml | 18000r/min | 36220xg | PP/PC tube |
NO.4
| Fixed Angle Rotor | 6×50ml | 20000r/min | 43000xg | PP/PC tube |
NO.5
| Fixed Angle Rotor | 6×85ml | 15000r/min | 25700xg | PP/PC tube |
NO.6
| Fixed Angle Rotor | 4×250ml | 14000r/min | 30200xg | PP/PC tube |
NO.7
| Fixed Angle Rotor | 6×250ml | 12000r/min | 22500xg | PP/PC tube |
Adapter | 6×50ml | ||||
NO.8
| Fixed Angle Rotor | 8×100ml | 14000r/min | 26952xg | PP/PC tube |
NO.9
| Fixed Angle Rotor | 6×500ml | 10000r/min | 17800xg | PP/PC tube |
NO.10
| Fixed Angle Rotor | 4×1000ml | 8000r/min | 12000xg | PP/PC tube |
Features:
Durable Build: Autoclave-able steel body and stainless steel chamber ensure longevity.
Precision Control: Microprocessor control and frequency conversion motor drive for accurate performance.
User-Friendly Interface: Touch color screen displays Speed, Timer, RCF, Rotors, and more.
Wind Cover Shield: Prevents air currents from affecting specimens during processing.
Advanced Rotor: Super hard aluminium alloy rotor offers excellent sealing and sterilization resistance.
Easy Maintenance: Double-layer silicone seal ring in door cover and body.
Efficient Cooling: CFC-free environmental protection refrigeration system with dual circuit control.
Programmable: Stores up to 30 programs for easy access and consistency in centrifugation.
Smooth Operation: 10-speed acceleration and deceleration curves prevent secondary sedimentation.
Safety Features:
Automatic Lid-Locking: Ensures the lid remains closed during rotor operation.
Rotor Locking: Rotor head automatically tightens; incorrect rotor detection enhances safety.
Emergency Release: Lid-lock releases in case of power failure.
Protection Systems: Equipped with over speed, over current, and
unbalance detection for real-time monitoring.
