Hunan Michael Laboratory Instrument Co.,Ltd.
2 Years
| Ask Lasest Price | |
| Model Number : | TGL-16M |
| Certification : | CE,ISO13485,ISO9001,IUV,SFDA |
| Price : | Negotiable |
| Delivery Time : | 7-15 work days |
| Payment Terms : | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability : | 100 set/month |
| Brand Name : | MKE |

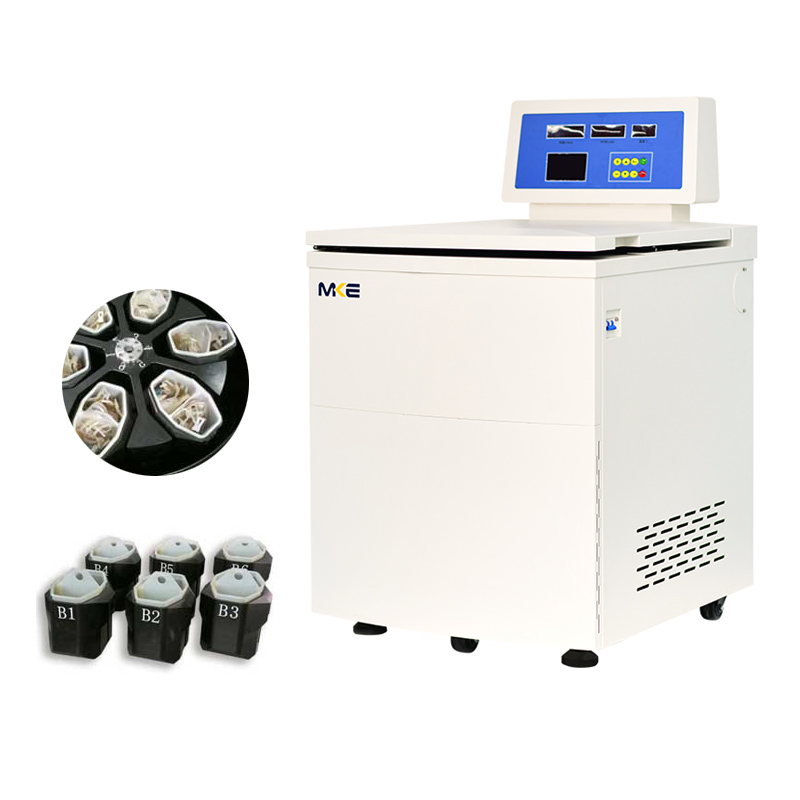

High speed refrigerated centrifuge TGL-16M can reach a maximum
speed of 16500rpm. The refrigeration feature allows for temperature
control during the separation process, which is important for
maintaining the integrity of certain samples. It is designed to
accommodate various types of fixed-angle rotors and adapters,
making it suitable for high-speed centrifugation of volumes ranging
from 0.2ml to 100ml. Its compact design makes it ideal for
laboratories with limited space.
Design
● Metal housing, metal lid, and stainless steel centrifuge chamber are autoclave-able and resistant detergents and disinfection liquids.
● Observations window on lid for speed calibration and noise measurement.
● Microprocessor control with frequency conversion A.C. motor drive
● LCD touch screen with simple&clear interface for viewing and setting parameters.
● Double layers sealing ring made for the centrifuge lid and the instrument to keep long good sealing.
User friendly
● CFC-free refrigerant, temperature sensor inside the chamber, pre-cooling feature, precise temperature control up to – 20°C.
● Programmable and storable, stores up to 30 programs and provides direct user access with one keystroke save. The stored parameter: combination remains in the memory even after the centrifugation has been switched off.
● Provides the 10 acceleration rates and 10 braking ramp, to effectively avoid secondary sedimentation, with better centrifugation effect.
● Automatic lid-locking and holding during rotor run
● Easily exchangeable rotors, special rotor connector which makes it easy to load and unload rotor.
● Automatic troubleshooting with indication of error code and alarm on the screen.
● Noise level lower than 58 decibel at the highest rotational speed.
● Automatic rotor identification system, coded rotor identification prevents the rotor from over speeding.
Safety
● Safety and Standards Certification: CE
● Product Safety: EN61010-1 and EN 61010-2-020 Electromagnetic Compatibility: EN 61326-1
● Safety Electrical lid interlock,door can not open when rotor is running and machine won’t run when lid open and error code appears.
● Emergency lid-lock release(in case of power failure).
● Gas hinge for lid drop protection.
● Safety protections are made for the over speed, over
heating(motor, chamber), imbalance etc to ensure the man machine
safety.
Technical Specifications:
| Max. RPM | 16,500rpm | Speed accuracy | ±10r/min |
| Max.Capacity | 4 x100ml | Temp. Range | -20 °C ~ 40°C |
| Max.RCF | 19480xg | Temperature control accuracy | ±1℃ |
| Time control | 1-99minutes 59s adjustable | ACC/DEC | 10/10 steps |
| Noise level (dB) | ≦58dB(A) | Program memory | 30 |
| Display | LCD | Weight without rotor (kg) | 70 kg |
Dimension (W x D x H, mm) | 600x570x380mm(LxWxH) | Power supply | AC220V,50HZ,10A; 880W |
Matched Rotors(Customized rotors are available)
| No. | Item | Max. capacity | Max.speed | Max.RCF | Note |
| NO.1 | Angle rotor | 12×1.5/2.2ml | 16500r/min | 19176xg | PP/PC tube |
| Adapter | 12×0.5ml | PP/PC tube | |||
| Adapter | 12×0.2ml | PP/PC tube | |||
| NO.2 | Angle rotor | 12×5ml | 16500r/min | 19480xg | PP/PC tube |
| Adapter | 12×1.5ml | PP/PC tube | |||
| NO.3 | Angle rotor | 12×10ml | 12000r/min | 13523xg | PP/PC tube |
| Adapter | 12×5ml | PP/PC tube | |||
| NO.4 | Angle rotor | 24×1.5/2.2ml | 14000r/min | 18407xg | PP/PC tube |
| Adapter | 24×0.5ml | PP/PC tube | |||
| Adapter | 24×0.2ml | PP/PC tube | |||
| N0.5 | Angle rotor | 36×1.5/2.2ml | 13000r/min | 15304xg | PP/PC tube |
| Adapter | 36×0.5ml | PP/PC tube | |||
| Adapter | 36×0.2ml | PP/PC tube | |||
| NO.6 | Angle rotor | 12×8×0.2ml | 12000r/min | 16985xg | PCR 8-tube strips |
| NO.7 | Angle rotor | 10×15ml | 11000r/min | 14069xg | PP/PC tube |
| Adapter | 10×10ml | PP/PC tube | |||
| Adapter | 10×5ml | PP/PC tube | |||
| NO.8 | Angle rotor | 6×50ml | 11000r/min | 13122xg | PP/PC tube |
| Adapter | 6×15ml | PP/PC tube | |||
| Adapter | 6×10ml | PP/PC tube | |||
| Adapter | 6×1.5ml | PP/PC tube | |||
| NO.9 | Angle rotor | 4×10/100ml | 10000r/min | 10979xg | PP/PC tube |
| Adapter | 4×50ml | PP/PC tube | |||
| Adapter | 4×15ml | PP/PC tube | |||
| Adapter | 4×10ml | PP/PC tube | |||
| Adapter | 4×5ml | PP/PC tube | |||
| Adapter | 4×1.5ml | PP/PC tube |
If you require more rotor options, such as swing out rotors, we
also have other refrigerated centrifuges available, please contact
us to recommend the suitable model for you!
Other Refrigerated Centrifuge
 |  |
 |  |
 |  |
WHY CHOOSE US
Our Factory Introduction
We have a standardized production workshop operated by a dedicated team that ensures quality in every laboratory centrifuge and lab equipment we produce. Our R&D division includes design engineers, technology specialists, qualified experts, and process control managers. Following a strict quality control system, our specialists oversee the entire production process, from design and R&D to testing, production, quality inspection, and packaging.
Specialize in centrifuges.
With decades of experience, we've exported to 80+ countries.
Proven Reputation: SGS and Intertek inspected, underlining our reliablity.
Manufacturing Capabilities: 6 floors, 3000 sqm each, dedicated to manufacturing and quality control.
MKE Exhibition
Packaging & Delivery
MKE centrifuges are securely packaged in wooden cases or carton boxes, selected according to the weight and size of the goods. This ensures they are delivered in excellent condition to customers worldwide.
After-Sale WARRANTY
FAQ
|
|
