Hunan Michael Laboratory Instrument Co.,Ltd.
2 Years
| Ask Lasest Price | |
| Brand Name : | MKE |
| Model Number : | TDZ5-WS |
| Certification : | CE,ISO13485,ISO9001,SFDA |
| Price : | Negotiable |
| Delivery Time : | 7-15 work days |
| Payment Terms : | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability : | 100 set/month |
Description

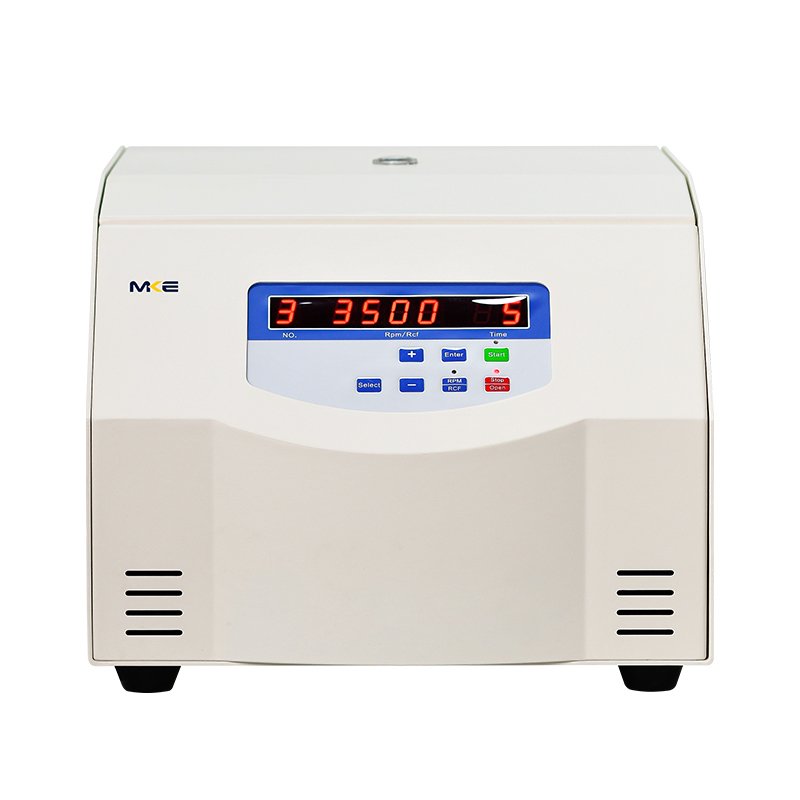

TDZ5-WS Benchtop Centrifuge, a fusion of cutting-edge technology and exceptional capacity. It comes equipped with a variety of swing-out and fixed-angle rotors, complemented by an array of buckets and adapters, accommodating tubes and flasks ranging from 2 ml to 400 ml, including microtiter and deepwell plates.
Wide Compatibility: With its versatile accessories, it seamlessly caters to applications in clinical diagnostics, veterinary medicine, pharmaceutics, environmental analysis, and industrial production. It's also ideal for use in universities and research facilities.
Powerful Centrifugal Force: Achieves a maximum Relative Centrifugal Force (RCF) exceeding 6,080 x g, ensuring efficient separation and processing across a multitude of samples.
Technical Specifications:
| Speed range(rpm) | 0-6000rpm adjustable | Speed accuracy | ±10rpm |
| Max Capacity(ml) | 4*400ml | RCF range (xg) | 0-4752xg adjustable |
| Display | LED | Time range | 1min-99minutes |
| Noise(dBA) | ≦58dB(A) | Acceleration /Deceleration rates | 1-- 10 |
| Dimension(mm) | 580x440x360mm | Motor | Frequency Converter motor |
| Net weight(without rotor) | 40KGS | Power supply | AC220V,50HZ,10A,570W |
Matched Rotors(MKE can produce custom accessories upon request)
| No. | Item | Capacity | Max.speed | Max.RCF | Note |
NO.1 | Angle rotor | 12×5-10-15ml | 6000r/min | 4588xg | PP/PC tube |
| Adapter | 12×2ml | ||||
NO.2 | Swing rotor | Steel frame rotor | 5000r/min | 4752xg | |
| Swing frame | 4×100ml | PP/PC tube | |||
| Swing frame | 4×50ml | PP/PC tube | |||
| Adapter | 4×15/10ml | PP/PC tube | |||
NO.3 | Swing rotor | Steel frame rotor | 4000r/min | 3041xg | |
| Swing frame | 4×2×100ml | PP/PC tube | |||
| Swing frame | 4×2×50ml | PP/PC tube | |||
| Adapter | 4×2×15/10ml | PP/PC tube | |||
| Swing frame | 4×8×15/10/5ml | PP/PC/Vacuum blood collection tubes | |||
| Rack | 4×12×5/2ml | Vacuum blood collection tubes | |||
NO.4 | Swing rotor | 4×18×2/5ml | 4000r/min | 2773xg | Vacuum blood collection tubes |
NO.5 | Swing bucket | 4×400ml | 4000r/min | 3049xg | Square bucket |
| Adapter | 4×16×5/2ml | Vacuum blood collection tubes | |||
| Adapter | 4×9×15/10ml | PP/PC tube | |||
| Adapter | 4×4×50ml | PP/PC tube | |||
| Adapter | 4×100ml | PP/PC tube | |||
NO.6 | Swing bucket | 4×250ml | 4000r/min | 3049xg | Round bucket |
| Adapter | 4×9×5/2ml | Vacuum blood collection tubes | |||
| Adapter | 4×5×15/10ml | PP/PC tube | |||
| Adapter | 4×50ml | PP/PC tube | |||
| Adapter | 4×100ml | PP/PC tube | |||
| Adapter | 4×9×1.5ml | PP/PC tube | |||
NO.7 | Microplate rotor | 2×2×96 hole | 4200r/min | 2860xg | Square bucket |
| Adapter | 2×32×1.5ml | PP/PC tube |
Features
Robust Construction: Crafted from high-quality steel, including a blast-proof steel chamber and autoclave-able 304# stainless steel, ensuring durability and resistance to disinfectants.
Precision Control: Microprocessor-controlled with a frequency conversion A.C. motor drive, offering accurate and efficient centrifugation processes.
Intuitive Interface: The LED display showcases vital parameters, including Speed, Timer, RCF, Rotors, Program (Memory), Acceleration & Deceleration details, and Error Codes, enhancing operational clarity.
User-Friendly Design: Featuring a dual-layer sealing ring for enhanced lid and instrument sealing, alongside programmable memory storing up to 30 programs. Adapters ranging from 0.5 ml to 500 ml provide versatile usage.
Efficient Operation: Offers 10 acceleration rates and 10 braking ramps to prevent secondary sedimentation, ensuring superior centrifugation results.
Safety First: Complies with international safety regulations (e.g., IEC 61010). Equipped with electrical lid interlock, automatic lid-locking during rotor run, emergency lid-lock release during power failure, and a gas hinge for lid drop protection.
Reliable Performance: Boasts automatic troubleshooting capabilities, displaying error codes and alarms on the screen. Operates quietly, generating noise levels below 58 decibels even at maximum rotational speed.
WHY CHOOSE US
Our Factory Introduction
We have a standardized production workshop operated by a dedicated
team that ensures quality in every laboratory centrifuge and lab
equipment we produce. Our R&D division includes design
engineers, technology specialists, qualified experts, and process
control managers. Following a strict quality control system, our
specialists oversee the entire production process, from design and
R&D to testing, production, quality inspection, and packaging.
Specialize in centrifuges.
With decades of experience, we've exported to 80+ countries.
Proven Reputation: SGS and Intertek inspected, underlining our
reliablity.
Manufacturing Capabilities: 6 floors, 3000 sqm each, dedicated to
manufacturing and quality control.
MKE Exhibition
Packaging & Delivery
MKE centrifuges are securely packaged in wooden cases or carton boxes, selected according to the weight and size of the goods. This ensures they are delivered in excellent condition to customers worldwide.
After-Sale WARRANTY
FAQ
|
|
